High-quality band knives that stand out
Our product portfolio of high-quality band knives includes products designed precisely for contour cutting, splitting, hulling, profile cutting, shape cutting, cutting to length, trimming and customized cutting of soft foamed plastics and similar materials.
Our long-standing experience and knowledge of the market enables us to develop unique, special production processes which is why we have acquired a prominent position among the companies in this sector.
Customized grinding of the highest quality
We supply band knives for all standard cutting machines in the market with customized grinding: Ready to use and of the highest quality.
Of course, we develop and manufacture individual customized sizes according to customer needs and requirements.
Ask us - Quality of steel is our strength!We distinguish between
-
CNC-Knife
3 to 4.5 mm width
for contour cutting -
Horizontally running knife
25 to 100 mm width
for splitting and profiling -
Vertically running knife
8 to 25 mm width
for cutting to length
Band knives of the following sizes are included in our sales portfolio:
CNC-knife manufactured by bamefa GmbH
Oscillating band knife (CNC-knife)
with teeth for contour cutting machines
- 24 TpI; 3.0 x 0.45 mm toothed
- 24 TpI; 3.0 x 0.60 mm toothed
- 24 TpI; 3.6 x 0.60 mm toothed
- 24 TpI; 3.8 x 0.70 mm toothed
- 24 TpI; 4.5 x 0.80 mm toothed
Rotating band knife (CNC-knife)
smooth or toothed
- 3.0 x 0.45 mm smooth
- 3.0 x 0.60 mm smooth
- 3.6 x 0.60 mm smooth
- 3.8 x 0.70 mm smooth
- 4.5 x 0.80 mm smooth
- 12 TpI; 3.0 x 0.45 mm toothed
- 12 TpI; 3.0 x 0.60 mm toothed
- 12 TpI; 3.6 x 0.60 mm toothed
- 12 TpI; 3.8 x 0.70 mm toothed
- 12 TpI; 4.5 x 0.80 mm toothed
- 24 TpI; 3.0 x 0.45 mm toothed
- 24 TpI; 3.0 x 0.60 mm toothed
- 24 TpI; 3.6 x 0.60 mm toothed
- 24 TpI; 3.8 x 0.70 mm toothed
- 24 TpI; 4.5 x 0.80 mm toothed
Horizontal band knives
We produce and distribute this variant up to a width of 100 mm.
We supply fully ground band knives of the highest quality. All of the band knives can be used in all the cutting machines available in the market.

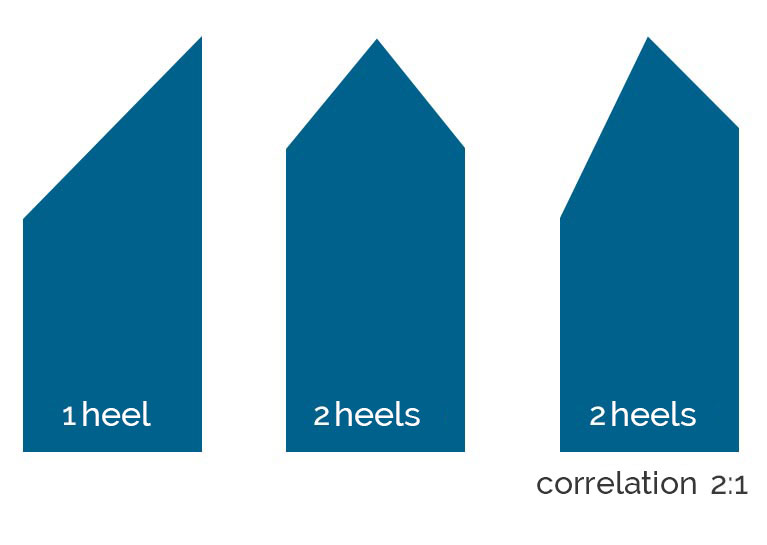

Standard version
-
1 heel - one side ground:
25.00 mm to 100.00 mm in width,
0.45 mm to 1.00 mm in thickness -
2 heels - both sides ground:
25.00 mm to 100.00 mm in width,
0.45 mm to 1.00 mm in thickness
High Quality
Grinded surface, lower tolerances, for min. movement
-
1 heel - one side ground:
25.00 mm to 100.00 mm in width,
0.45 mm to 1.00 mm in thickness -
2 heels - both sides ground:
25.00 mm to 100.00 mm in width,
0.45 mm to 1.00 mm in thickness
Vertical band knives
Vertical band knives
Smooth
Vertical band knives, smooth, includes:
- 1 heel
8.00 mm – 25.00 mm width,
0.45 mm – 0.60 mm thickness - 2 heels
8.00 mm – 25.00 mm width,
0.45 mm – 0.60 mm thickness - 4 heels
8.00 mm – 25.00 mm width,
0.45 mm – 0.60 mm thickness - 4 heels twisted
8.00 mm – 25.00 mm width,
0.45 mm – 0.60 mm thickness

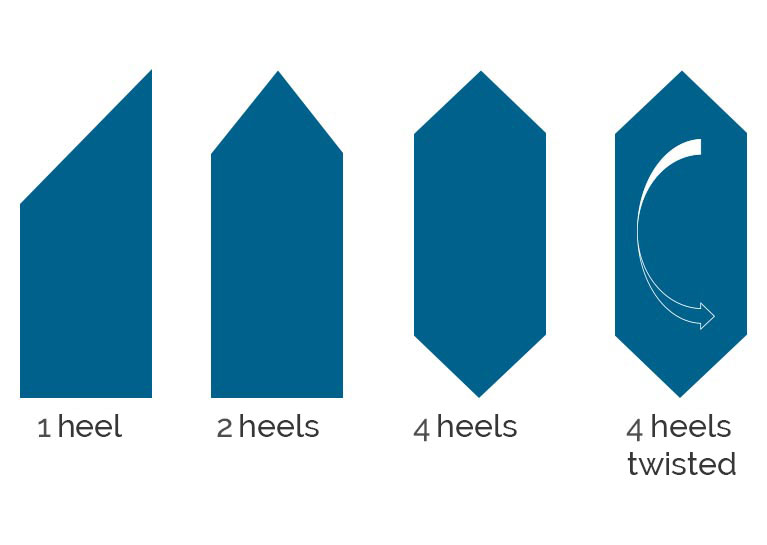

Shape of the ground section for narrow band knives:
Toothed band knives
Selection of toothed band knives
Pointed tooth,
Ground on both sides
- 10 TpI; 10.00 mm x 0.45 mm
- 10 TpI; 15.00 mm x 0.45 mm
- 18 TpI; 10.00 mm x 0.45 mm
- 18 TpI; 15.00 mm x 0.45 mm
Selection of toothed band knives
Double-pointed tooth,
Ground on four sides
- 10 TpI; 10.00 mm x 0.45 mm
- 10 TpI; 15.00 mm x 0.45 mm
- 18 TpI; 10.00 mm x 0.45 mm
- 18 TpI; 15.00 mm x 0.45 mm
Selection of toothed band knives
Angle tooth,
Ground on one side or on both sides
- 10 TpI; 10.00 mm x 0.45 mm
- 10 TpI; 15.00 mm x 0.45 mm
- 18 TpI; 10.00 mm x 0.45 mm
- 18 TpI; 15.00 mm x 0.45 mm
Selection of toothed band knives
Scalloped edge,
concave
- 15.00 bis 30.00 mm x 0.45 mm
Band knives
Scalloped edge,
convex
- 10.00 bis 30.00 mm x 0.45 mm
Band knives
Double-scalloped edge,
concave or convex
- 15.00 mm x 0.45 mm
